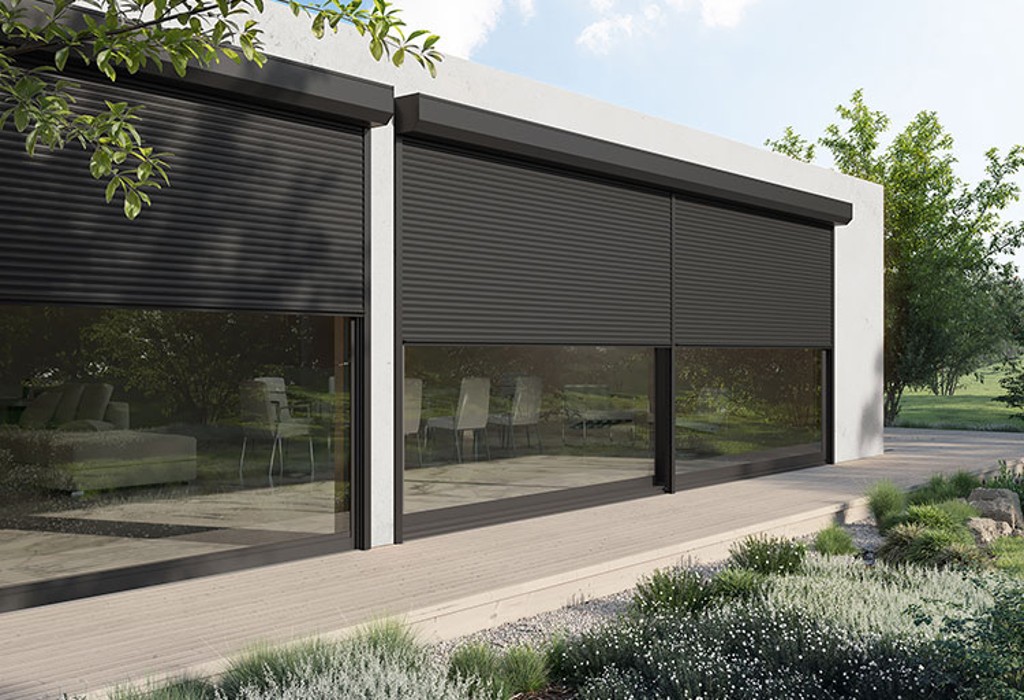

Front-mounted roller shutter

Ideal for retrofitting thanks to a wide range of colors and designs.

Front-mounted roller shutters - ideal for retrofitting

Whether new build or renovation - heroal front-mounted roller shutters offer comfort, protection and energy-efficiency. They are installed in front of the window and are ideal for retrofitting during modernization or renovation. The high-quality aluminium system provides reliable protection fro

Whether new build or renovation - heroal front-mounted roller shutters offer comfort, protection and energy-efficiency. They are installed in front of the window and are ideal for retrofitting during modernization or renovation. The high-quality aluminium system provides reliable protection from the sun, weather and prying eyes - and increases security up to resistance class RC 3. Thanks to the many design and equipment options, heroal front-mounted roller shutters adapt perfectly to your curtain wall. For more privacy, living quality and security - day after day.

Advantages of heroal front-mounted roller shutters at a glance

Subsequent installation

  • Ideal for retrofitting in existing buildings
  • Almost invisible integration of the front box possible
  • Harmonious façade design even in existing buildings

Small blending boxes

  • Compact box sizes even with large window areas
  • Discreet look for modern architecture
  • Space-saving and stylish at the same time

Individual design

  • Aperture boxes in various shapes and sizes
  • Wide range of colors and designs for every curtain wall
  • Perfect adaptation to your style and wishes

heroal front-mounted roller shutters at a glance

Versatile in use
heroal RS 37
Increased burglary protection
heroal RS 37 RC 2
Increased burglary protection
heroal RS 37 RC 3
Narrow winding
heroal RS 41 SW
For particularly large element widths
heroal RS 52
Burglar-resistant for large units
heroal RS 55 SL
  heroal RS 37 heroal RS 37 RC 2 heroal RS 37 RC 3 heroal RS 41 SW heroal RS 52 heroal RS 55 SL
Box type Roll formed
Front box		 Security
Front box		 Security
Front box		 Roll-formed stem box Roll-formed stem box GKSE
Box shape 20°, 45°, 90°, half-round, quarter-round 45° 45° 20°, 45°, 90°, half-round, quarter-round 20°, 45°, 90°, half-round, quarter-round 45°
Box sizes [mm] (height x depth) 125 - 205 205 205 137 - 205 150 - 205 205 - 300
burglary resistance Integrated anti-push-up device RC 2 RC 3 Integrated anti-push-up device Integrated anti-push-up device Integrated anti-push-up device
Max. Size [mm] (width x height) 3.000 x 3.500 2.095 x 2.350 1.920 x 2.140 3.500 x 3.500 4.500 x 3.100 5.000 x 4.000
Insect screen Yes No No Yes No No
Drive type Motor, belt Motor Motor Motor, belt Motor Motor
Smart Home Yes Yes Yes Yes Yes Yes

Integrated insect screen

Front-mounted roller shutter section Front-mounted roller shutter with integrated insect screen
Summertime is ventilation time - but it often brings flies, mosquitoes and wasps into the house. That doesn't have to be the case: The integrable insect screen roller blind from heroal reliably protects you from insects - exactly when you need it. It disappears quietly into the roller shutt

Summertime is ventilation time - but it often brings flies, mosquitoes and wasps into the house. That doesn't have to be the case: The integrable insect screen roller blind from heroal reliably protects you from insects - exactly when you need it. It disappears quietly into the roller shutter box to save space and is immediately ready for use when needed. In winter, it remains invisibly stowed away without having to be removed. So you can enjoy fresh air at all times - without annoying insects and without effort.

More information about the heroal insect screen solutions >
heroal 3D roller shutter configurator

Design your roller shutters conveniently online. Choose dimensions, colors, drive and design. You decide - whether classic or modern, electric or manual. Your home, your solution. Start directly in the configurator!

To the roller shutter configurator >

Construction and design variants

Whether a striking accent or discreet integration - the heroal front-mounted roller shutter can be perfectly adapted to the architecture of your home. Choose the shape, color and size to suit your taste. Thanks to its compact design and flexible system selection, the roller shutter adapts perfectly to any curtain wall - whether modern, classic or purist.

Whether harmoniously integrated or deliberately rich in contrast - design your front-mounted roller shutter as individually as your home.

Your design options at a glance:

  • Various box shapes: round, square, semicircular or beveled
  • Small box sizes for a discreet look for all window sizes
  • Color tone uniformity for cover box, guide rail and roller shutter slats
  • Flush-mounted solution (plaster base roller shutter) for almost invisible integration
  • Durable and color-fast surfaces

Front-mounted roller shutter cover 90 degrees
Roller shutter cover 90°
Front-mounted roller shutter cover 45 degrees
Roller shutter cover 45°
Front-mounted roller shutter cover 20 degrees
Roller shutter cover 20°
Semi-circular front-mounted roller shutter cover
Semicircular roller shutter cover
Front-mounted roller shutter cover quarter-round
Roller shutter cover quarter round

Certified security up to RC 3

A roller shutter can do more than just protect you from the sun or prying eyes. With the heroal security options, you can transform your front-mounted roller shutter into effective burglary protection - discreetly integrated and tested up to RC 3. This allows you to protect what is important to you - reliably, automatically and individually tailored to your security needs.

Which security level is right for me?

For classic burglary protection in residential areas, level 2 already offers very good protection and in many cases fulfills all basic security requirements. However, if your house is detached, you have particularly large window areas or want increased protection, we recommend level 3 - ideally in combination with a heroal security window for maximum security.

Security level Push up
inhibition		 Certification / resistance class Special features
1 Up to 750 N - -
2 Up to 750 N Certification according to TR 111 of the Federal Association of Roller Shutters and Sun Protection -
3 Up to 3000 N Resistance class RC 3 Integrated anti-lift device
4 Up to 6000 N Resistance class RC 3 Integrated anti-lift device

Why heroal front-mounted roller shutters are the right choice

As a family-run company with over 150 years of experience, we stand for quality without compromise. Our products are durable, well thought-out and tailored to your needs. Front-mounted roller shutters from heroal are easy to install, impress with their high energy-efficiency and blend in with the appearance of any curtain wall - ideal for new builds and retrofits.

Brochure heroal roller shutter systems

  • Heat insulation and soundproofing in one
  • Wide range of designs, box shapes and colors
  • Simple retrofitting without interfering with the building fabric
  • Over 3,500 specialist partners worldwide
  • Tested quality from Germany
  • Family business for more than 150 years

FAQ

  • Where can I buy heroal front-mounted roller shutters?

    Would you like to integrate front-mounted roller shutters into your new building or retrofit them? heroal front-mounted roller shutters can only be purchased from a heroal specialist partner. Our specialist partners will be happy to advise you on choosing the right front-mounted roller shutter and install it professionally in front of your window. Even after the installation of your heroal front-mounted roller shutters, our heroal specialist partners are available to you as reliable and competent service partners. Find the right specialist partner near you now from over 3,500 heroal installers worldwide.

    Find a specialist partner >

  • Can heroal front-mounted roller shutters be controlled electrically?

    Would you like to open and close your front-mounted roller shutters at the touch of a button or control them via app while on the move? Electric front-mounted roller shutters from heroal offer you a wide range of control options - for greater comfort and increased security. For example, you can control your front-mounted roller shutters via a sun or temperature sensor for an optimum indoor climate. Timer control of the front-mounted roller shutters is also possible. Opening or closing the roller shutters via app or integrating them into your smart home system offers you the greatest possible flexibility and control - even when you're on the move. Do you still have to open and close your front-mounted roller shutters manually using a roller shutter strap? Retrofitting a roller shutter drive is also possible with heroal front-mounted roller shutters, provided a corresponding power connection is available. Use our specialist partner search to find a specialist partner in your area who can equip your front-mounted roller shutters with an electric drive.

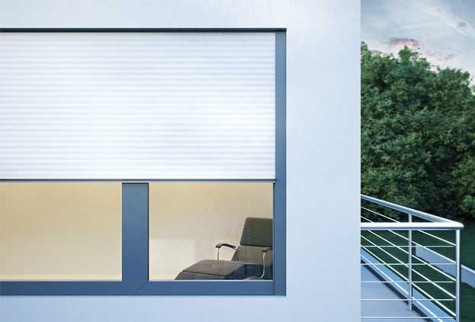

  • Can a front-mounted roller shutter also be invisibly plastered?

    Would you like to retrofit a roller shutter but want it to remain as good as invisible? This is easily possible with a plastered front-mounted roller shutter, also known as a plasterable front-mounted box, with a flush-mounted cover box. The cover box blends seamlessly and virtually invisibly into the curtain wall. A wide range of colours are available for all heroal roller shutter profiles. A large selection of shapes and sizes is available for flush mounting cover boxes. If a flush mounting shutter box is used, the roller shutter is rolled up on the left and the convex side of the roller shutter faces outwards.
